Reinforced Graphite Composite Gasket with Tinplate Product Description
Corrosion-Resistant Graphite Gasket Sheets for Industrial Use
Looking for premium-quality corrosion-resistant graphite gasket sheets designed to excel in extreme industrial environments? Discover our advanced range of graphite gasket sheets engineered for high-temperature, high-pressure applications, ensuring reliable sealing performance across diverse industries.
Material Composition & Construction
Our corrosion-resistant graphite gasket sheets feature a robust structure: two layers of pure flexible graphite (95-99% carbon content) bonded with a 0.2-0.25mm perforated metal insert. Choose from carbon steel (tinplate), SS201, 304, or 316 inserts for tailored durability. This design ensures exceptional adaptability, delamination resistance, and long-term reliability.
Key Features
- Superior Sealing Performance: Ideal for high-temperature (up to 500°C) and high-pressure systems.
- Corrosion Resistance: Withstands aggressive chemicals, oils, and steam.
- Cost-Effective: Economical solution for industrial sealing needs.
- Customizable Thickness: Available in 1.0-6.0mm standard sizes, including 3+2 layered configurations (Paper-Metal-Paper-Metal-Paper) for added strength.
- Wide Size Options: Standard dimensions (500x500mm, 500x1000mm, etc.) or fully customizable to your specifications.
Industrial Applications
Perfect for critical sealing in:
- Steam cycles and exhaust systems
- Chemical processing plants
- Automotive cylinder head gaskets
- Oil refineries and petrochemical equipment
- Power generation turbines
Why Choose Our Graphite Gaskets?
- High Yield & Durability: Engineered for minimal waste and maximum performance.
- Oil & Chemical Resistance: Maintains integrity in harsh operating conditions.
- Expert Support: Unsure about material selection? Use our gasket material selector or consult our rubber guide for tailored advice.
Need a Bespoke Solution?
Contact our team today for custom corrosion-resistant graphite gasket sheets designed to meet your exact requirements. We offer fast quotes and flexible production options to support your project timelines.
Shop Now
Browse our range of graphite gasket sheets (1.0-3mm standard thickness) and secure your order online. Remember, selecting the thinnest material for your application ensures optimal sealing efficiency.
Physical Property:
| Item | Data |
| Tensile Strength (MPa,min.) | ≥30 |
| Compressibility (%,) | 10-20 |
| Recovery (%) | ≥35 |
| 150ºC, At IRM 903# for 5hours | Thickness Increase(%) | ≤10 |
| Weight Increase(%) | ≤10 |
| 21ºC~30ºC, At B Fuel for 5hours | Thickness Increase(%) | ≤10 |
| Weight Increase(%) | ≤10 |
| Thickness Deviation(mm) | 0.05 |
Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas
Customer Service
We are happy to answer any questions that you might have about this product. Please contact us for more information.

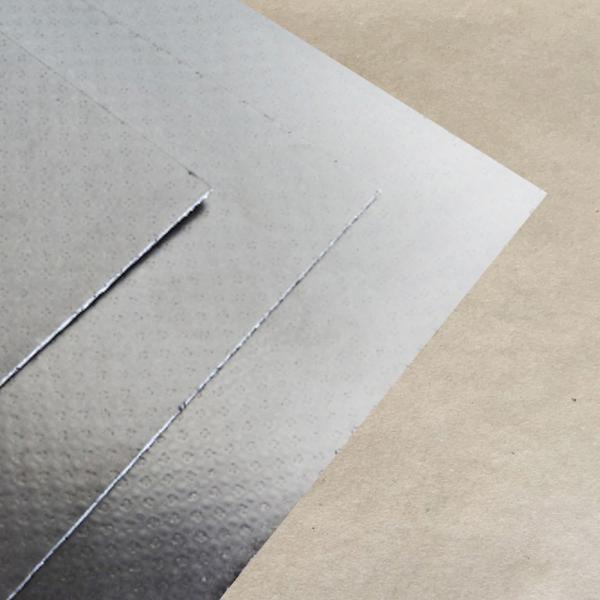

Product Shows
